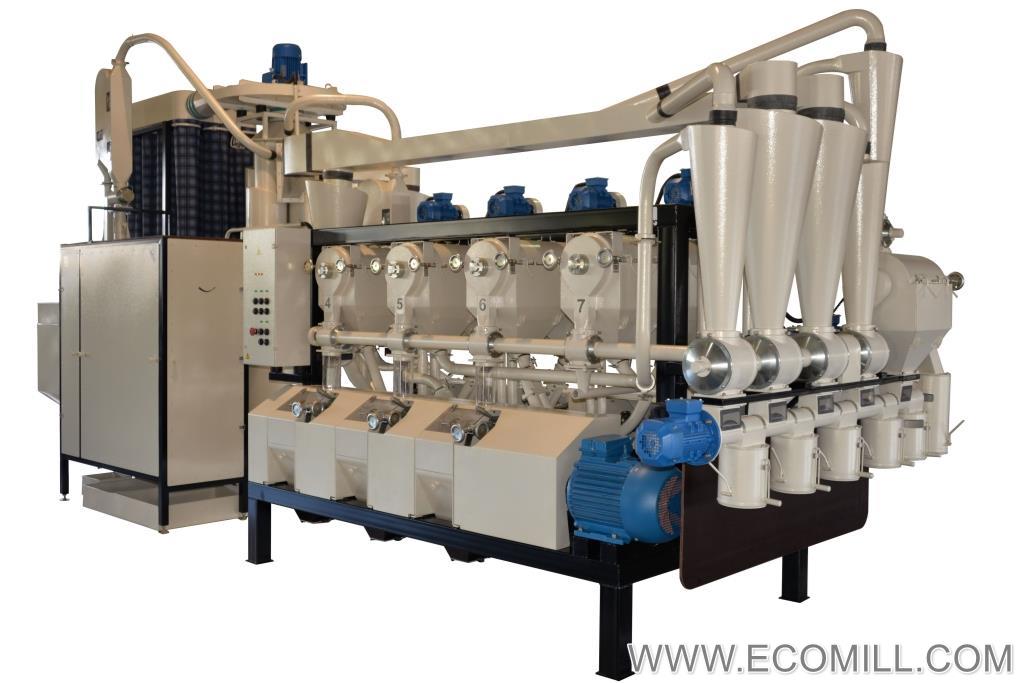

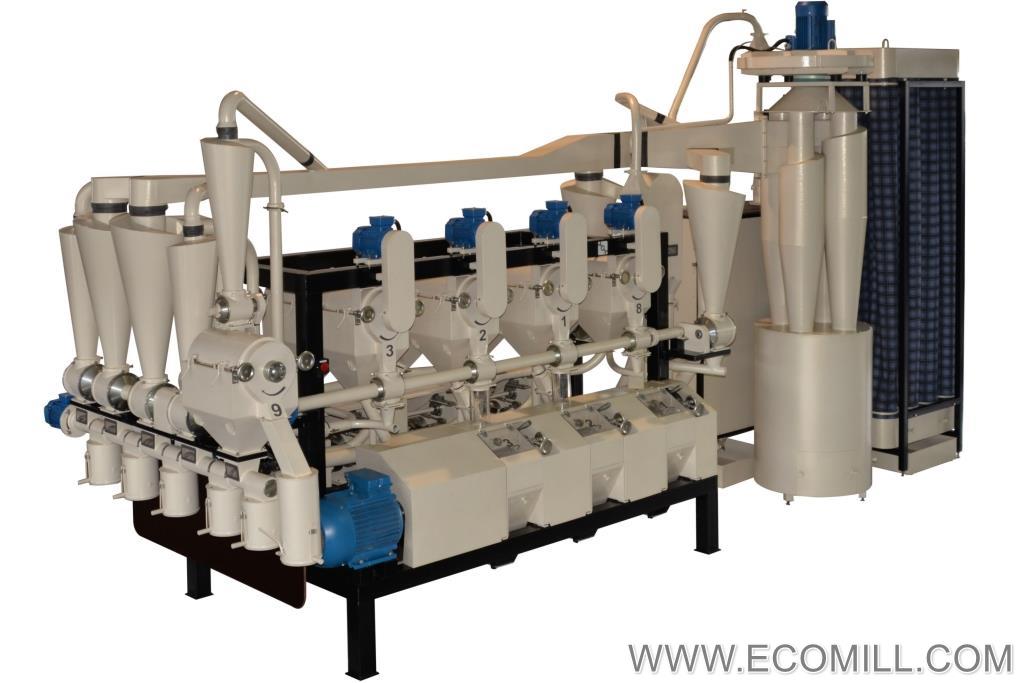

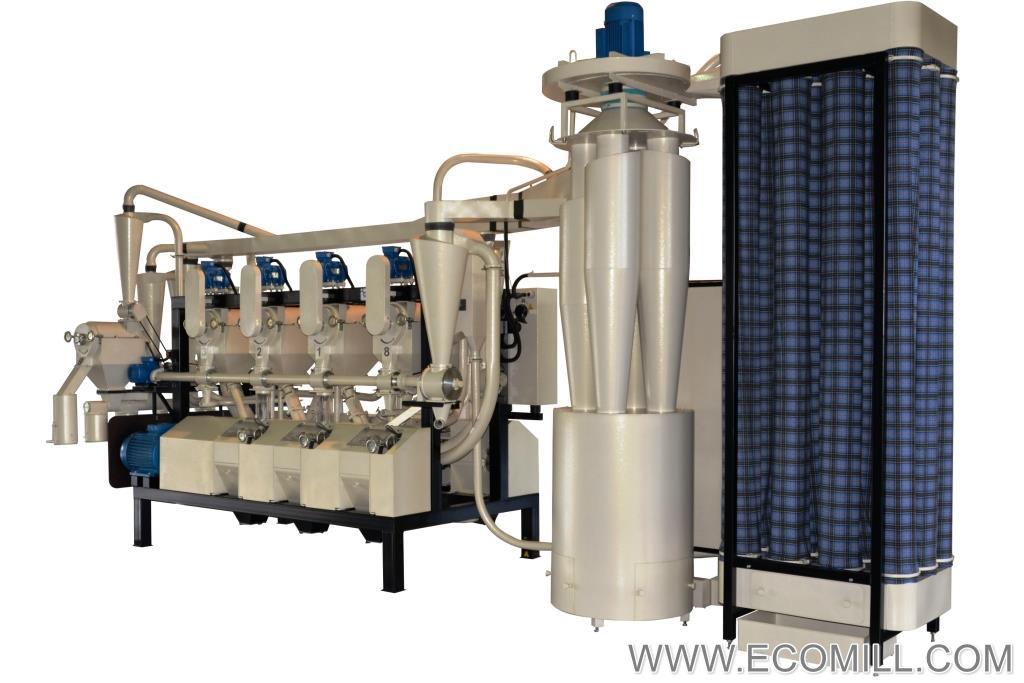

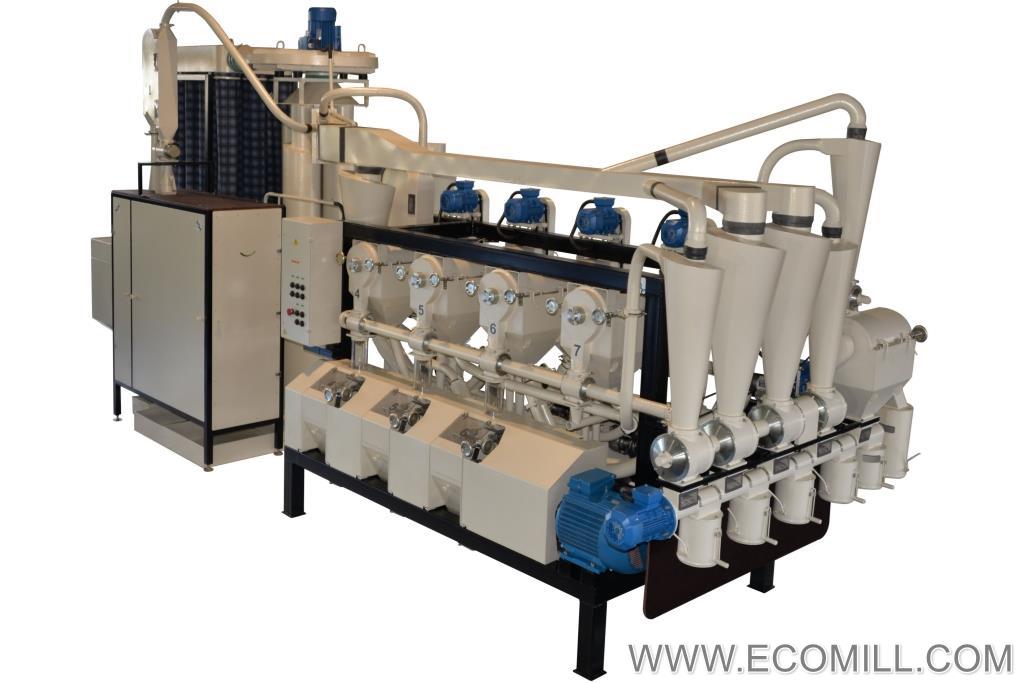

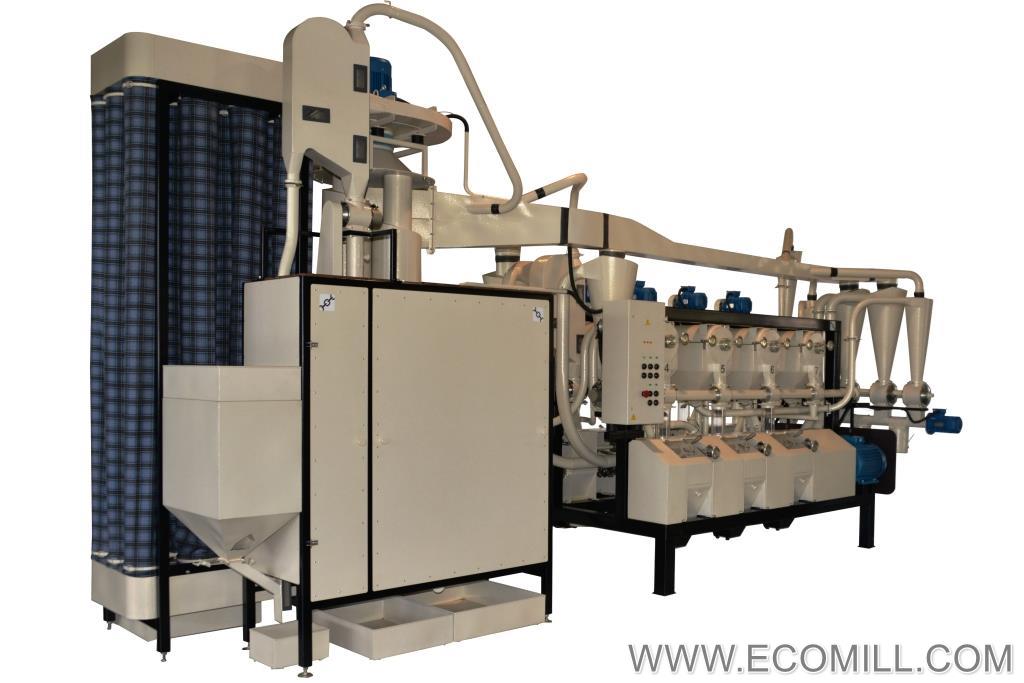

This Model of Roller Mill Produces Flour from whole Wheat (for Whole Wheat flour & ATTA flour), whole Rye or Teff, as well as Flour from DE-Hulled (Groats) Buckwheat, Corn, Millet or Rice. Processing up to 1700 lb. / 800 kg of grain per hour. It is possible to produce Flour from many other Grains or Groats having: humidity up to 13.5%, fat up to 3%, sugar up to 2%.
This model is designed for commercial twenty-four-hour use.
During operation, there is practically no need for additional machinery or tools, most parts can be purchased locally. Grinding rollers are highly wear-resistant and can withstand up to eight additional re-corrugations.

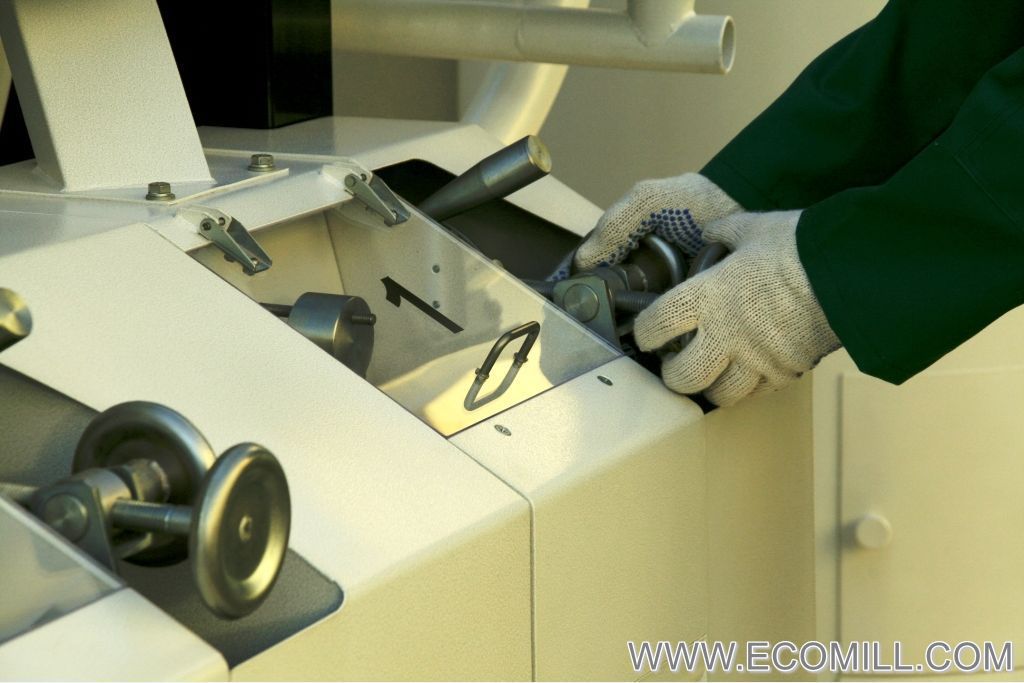

Simple servicing procedure requires two operators, using the operations manual available either in print or digital version. Product change-over time takes only 2-3 hours.
Specialized buildings are not necessary. Existing warehouse style buildings with the mill installed on a single floor and minimal height clearance is a standard for this mill. The mill combines minimal electrical consumption and easy portability with an elegant design.
Full productivity is guaranteed, the mill produces high-quality flour at the indicated rates immediately upon Start-up.
Main characteristics:
up to 1763 lb. / 800 kg per hour, Capacity of input product
85-95 %, Extraction of Buckwheat Flour
85-95 %, Extraction of Corn Flour
85-95 %, Extraction of Millet Flour
88-98 %, Extraction of Rice Flour
85-88 %, Extraction of Rye Flour
85-95 %, Extraction of Teff Flour
0-13 %, Extraction of Bran
2 %, By-product
via Mechanical and Pneumatic methods, Automatic conveying
3000 cubic meters per hour, High-pressure fan capacity
80 (with the use of hearing protection) dBa, Noise level rating
100 dB, Vibration acceleration
Specifications:

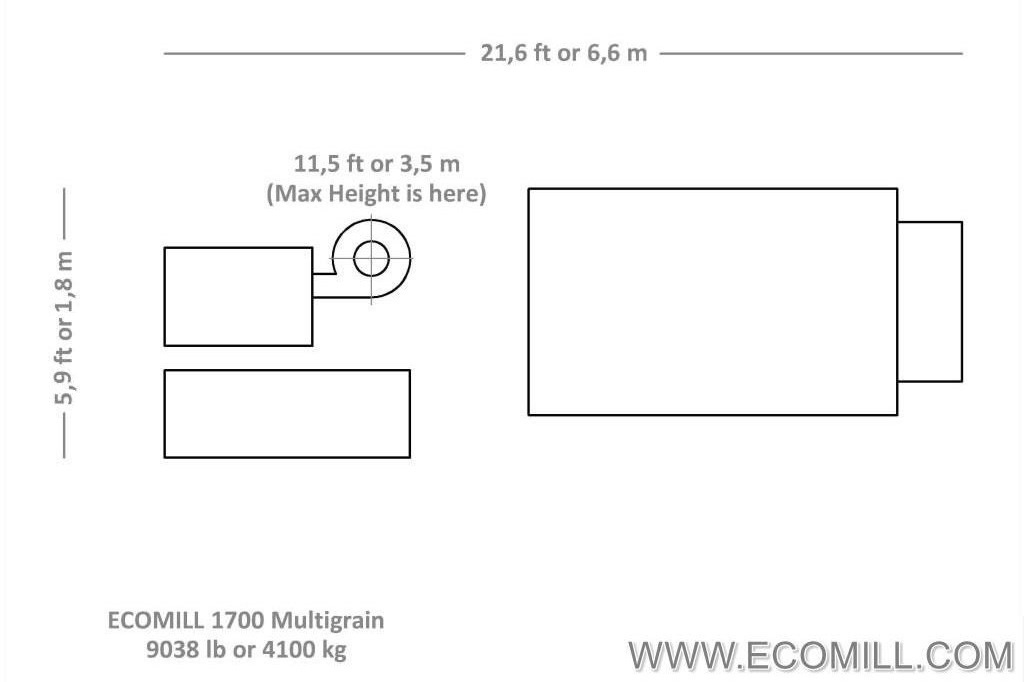

21,6 ft / 6,6 m, Length overall
5,9 ft / 1,8 m, Width overall
11,5 ft / 3,5 m, Height overall
9038 lb. / 4100 kg, Weight
8,2 x 8,9 ft / 2,5 x 2,7 m, Min dock door opening (W x H)
3 Phase 4 Wire, Wye Type, Electrical supply
208/240/480/600 or 380/400 V, Voltage
208-245 V, Single Phase Input Voltage (option)
60 / 50 Hz, Frequency
26 kW per hour, Power consumption
Cleaning section:
1 Receiving hopper
1 Destoner
2 Pneumatic separators
1 Airlock
2 Gear reducers
2 Magnetic separators

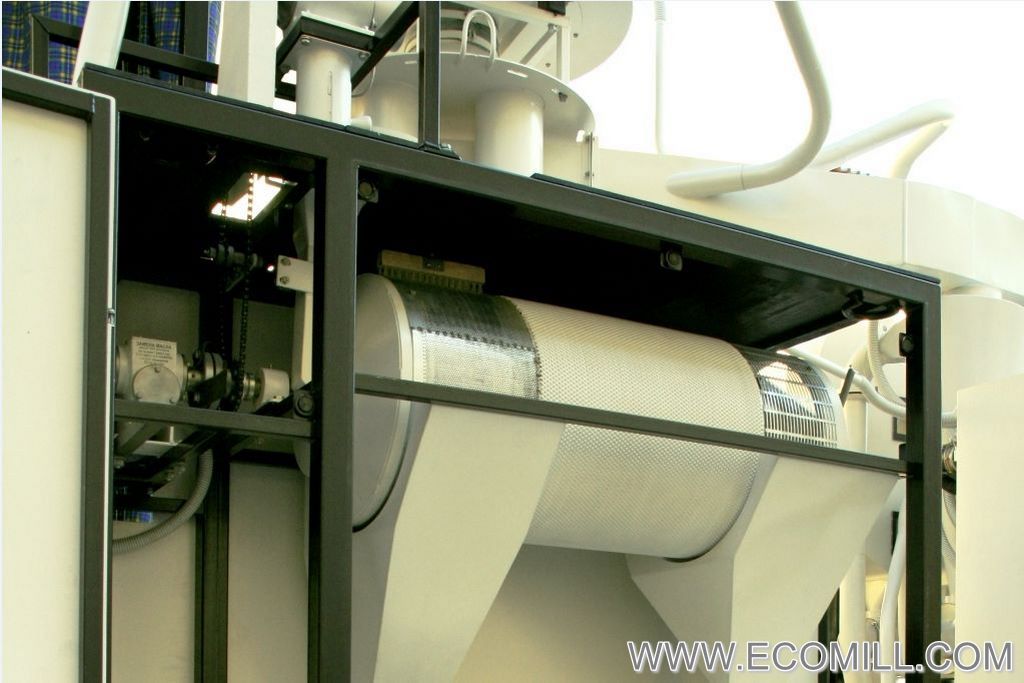

1 Sieve cleaner
1 Indented cylinder (for separates short impurities)
3 Waste containers

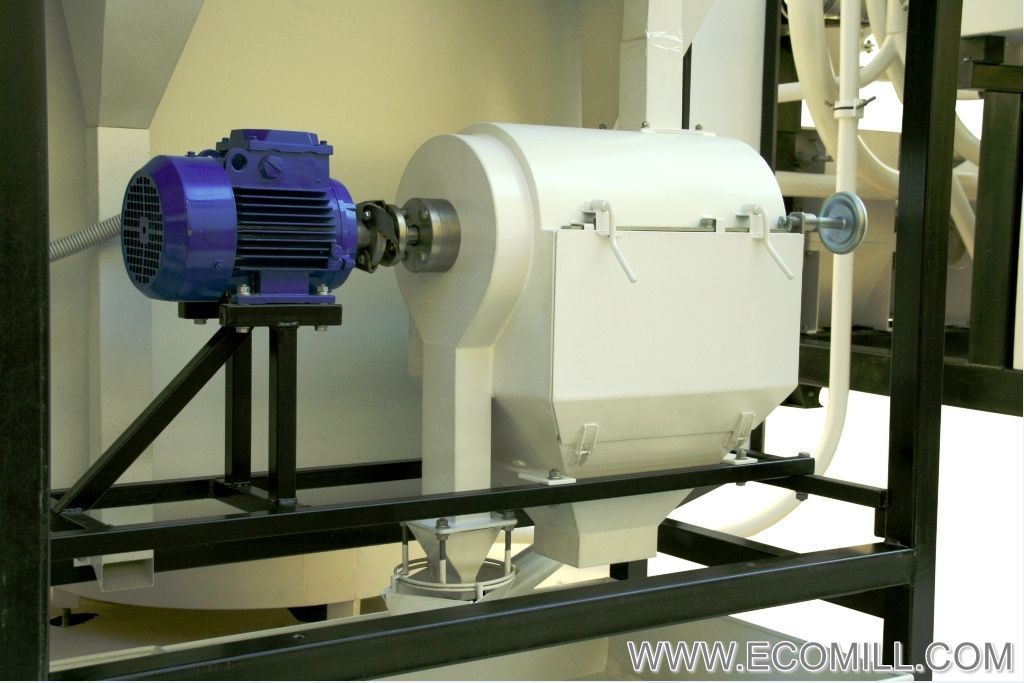

1 Scourer
Milling section:
47 Magnetic separators
16 Airlocks
2 Gear reducers

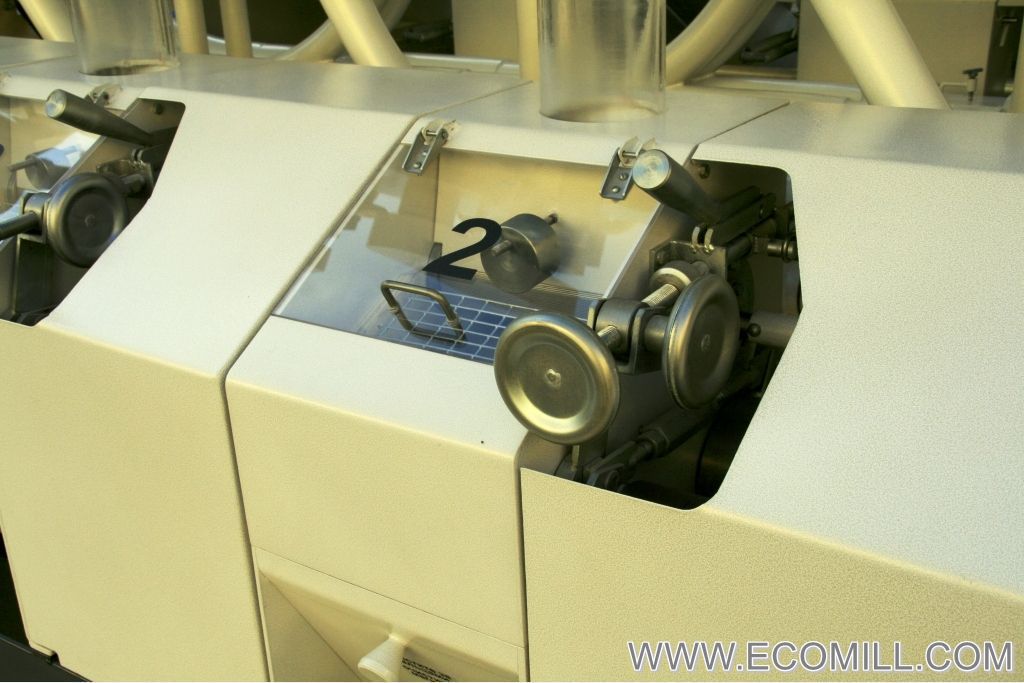

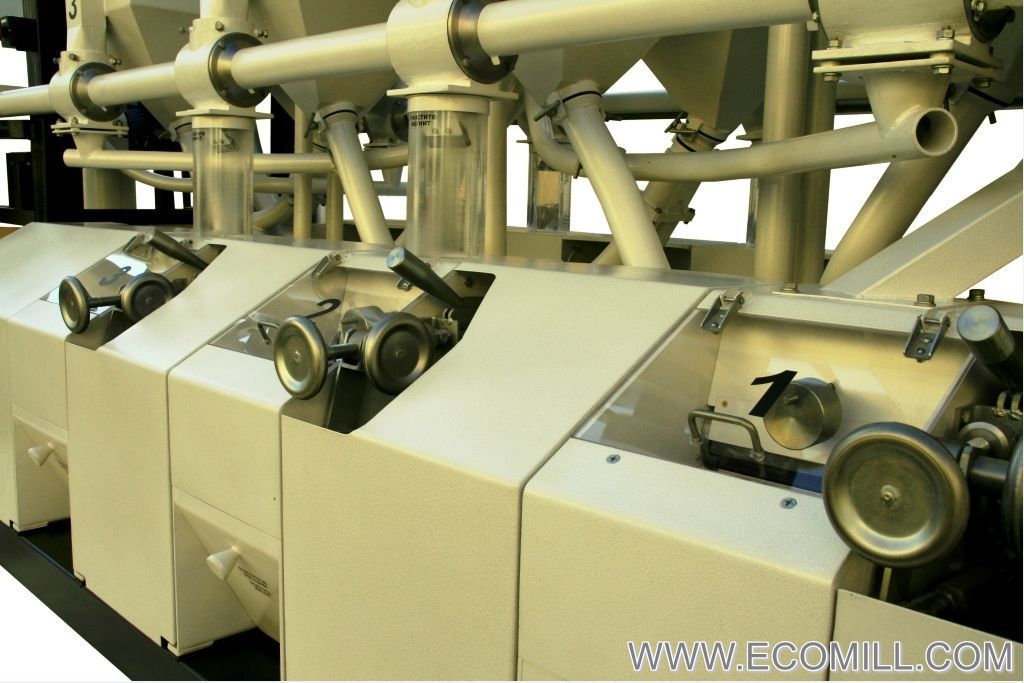

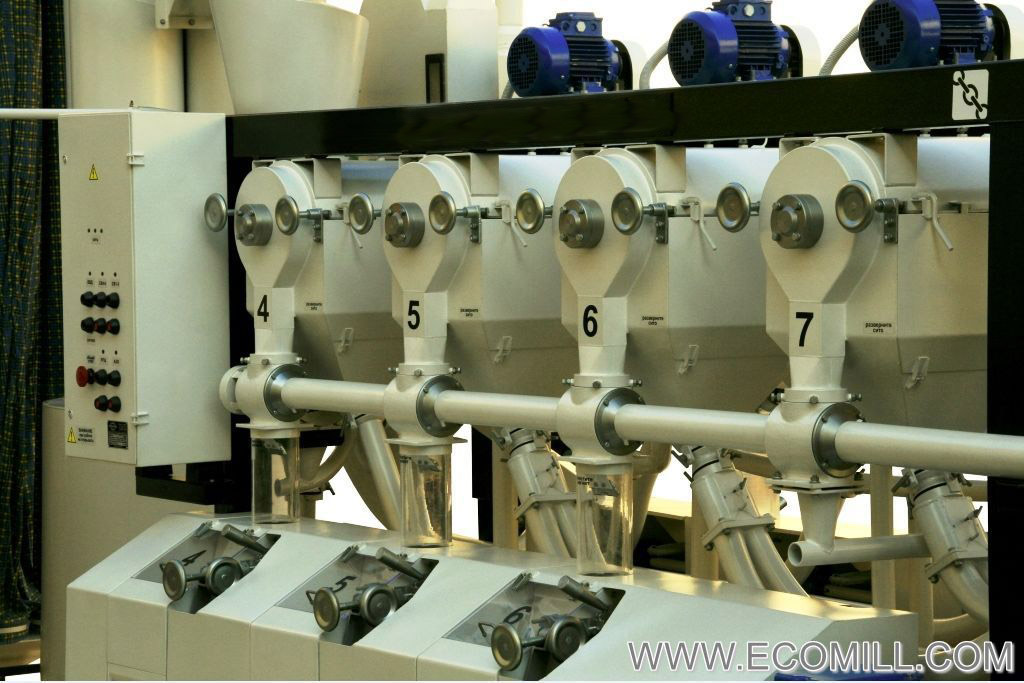

6 Roller sets
2 Cylindrical reducers

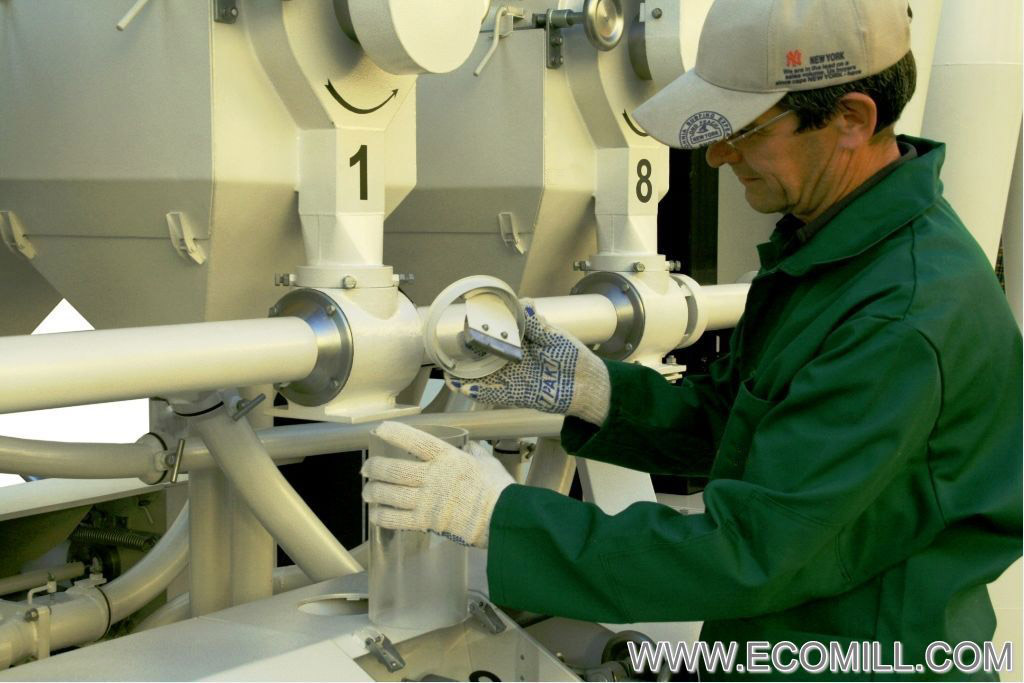

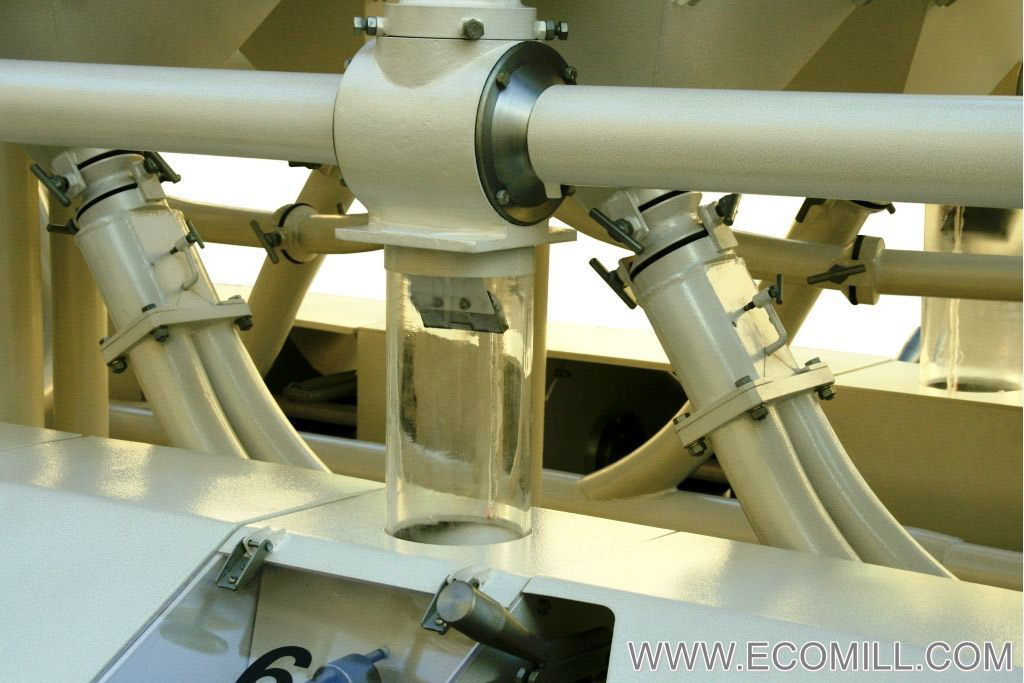

5 Transparent self-sinks

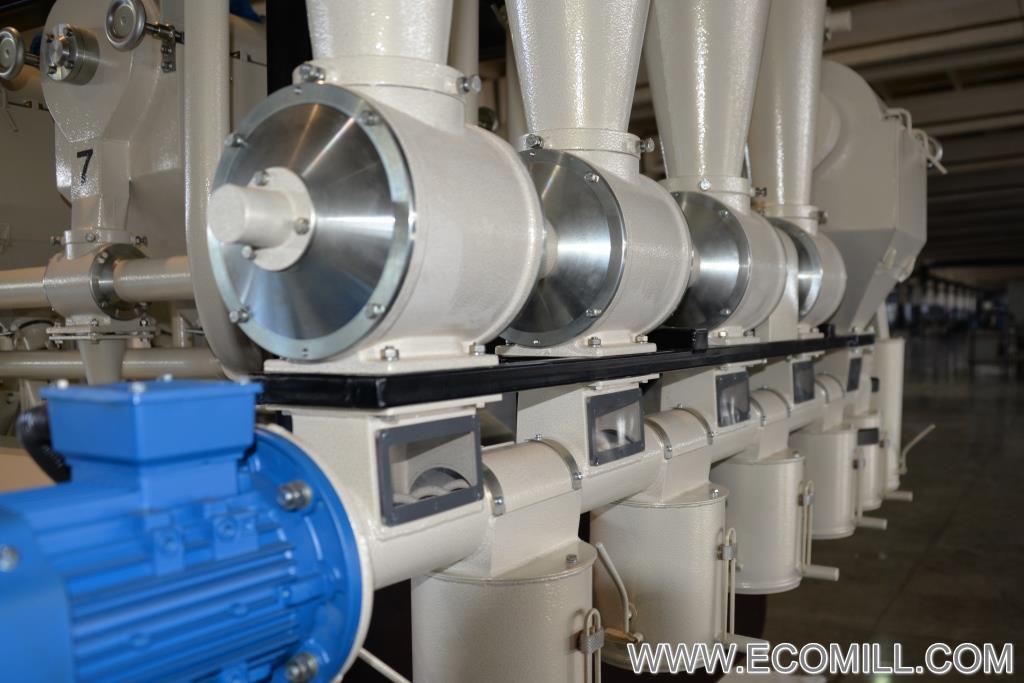

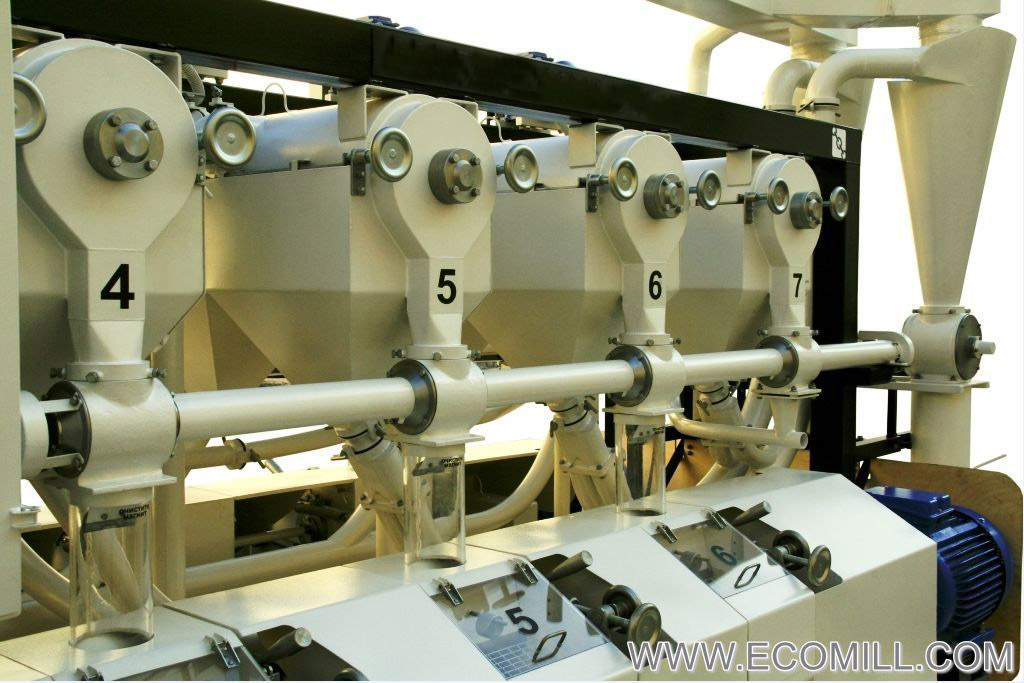

4 Pneumatic centrifugal sifters (two-system)
1 Centrifugal sifter

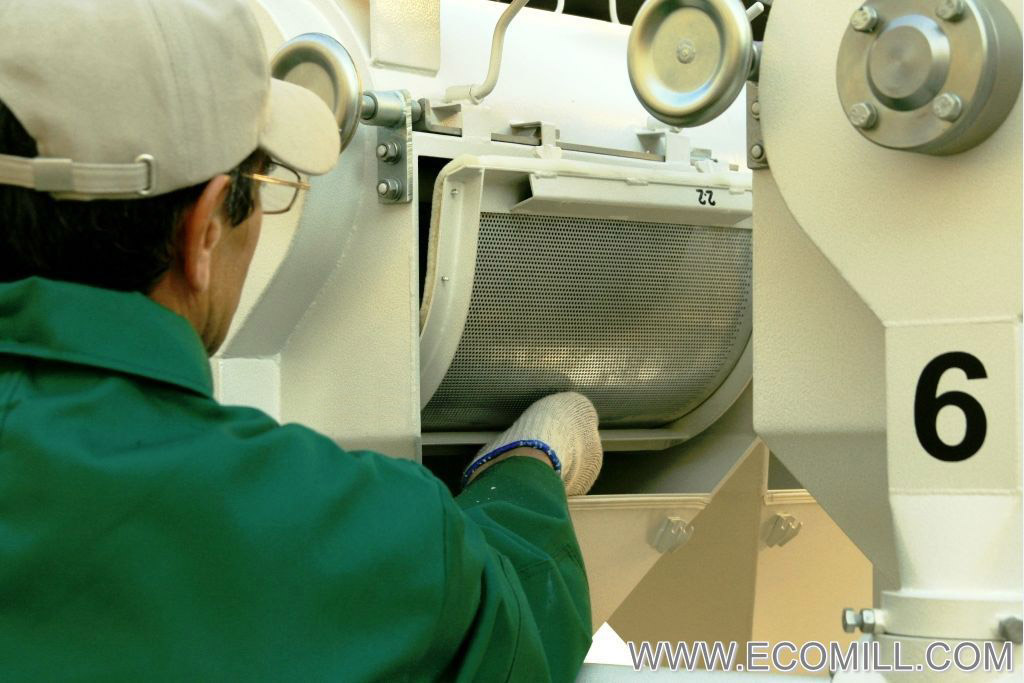

12 Complete sieves (with spare parts)
6 Flow switches on product pipelines
1 Bagging pothole
4 Bagging pipes
1 Bagging screw conveyor
1 Drive guard
Transportation of products:
1 High-pressure fan
1 Block of cleaning cyclones
1 Block of filter bags
1 Aspiration and product pipelines
3 Cyclone separators 260
4 Cyclone separators 400
1 Spouts
Electrical equipment:

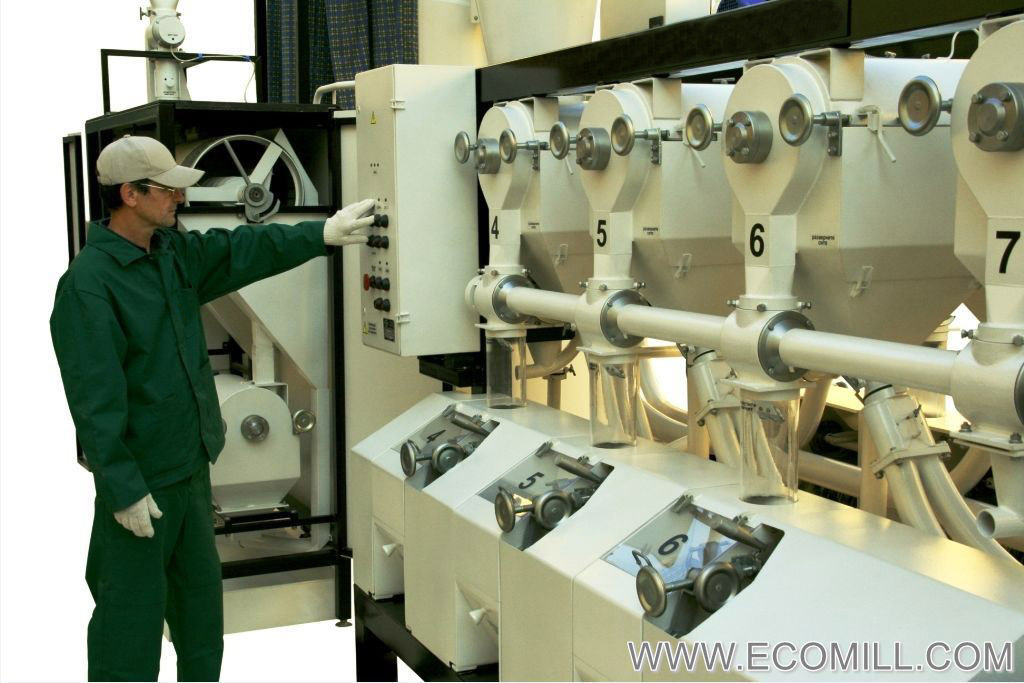

1 Electric panel
1 Airlocks speed control device
1 Electrical wiring conduit
1 Stop button
1 Alarm signal
12 Electric motors drives
Anticorrosion coating:
Galvanic
Polymer
Manual:
Print version
Digital version
Video version
ECOMILL is a leader in the Package Flour Milling System for processing Wheat, Rye, and Teff grains; Buckwheat and Maize groats; Proso millet or Rice into Flour.
It is possible to produce Flour from many other Grains or Groats having: humidity up to 13.5%, fat up to 3%, sugar up to 2%.
